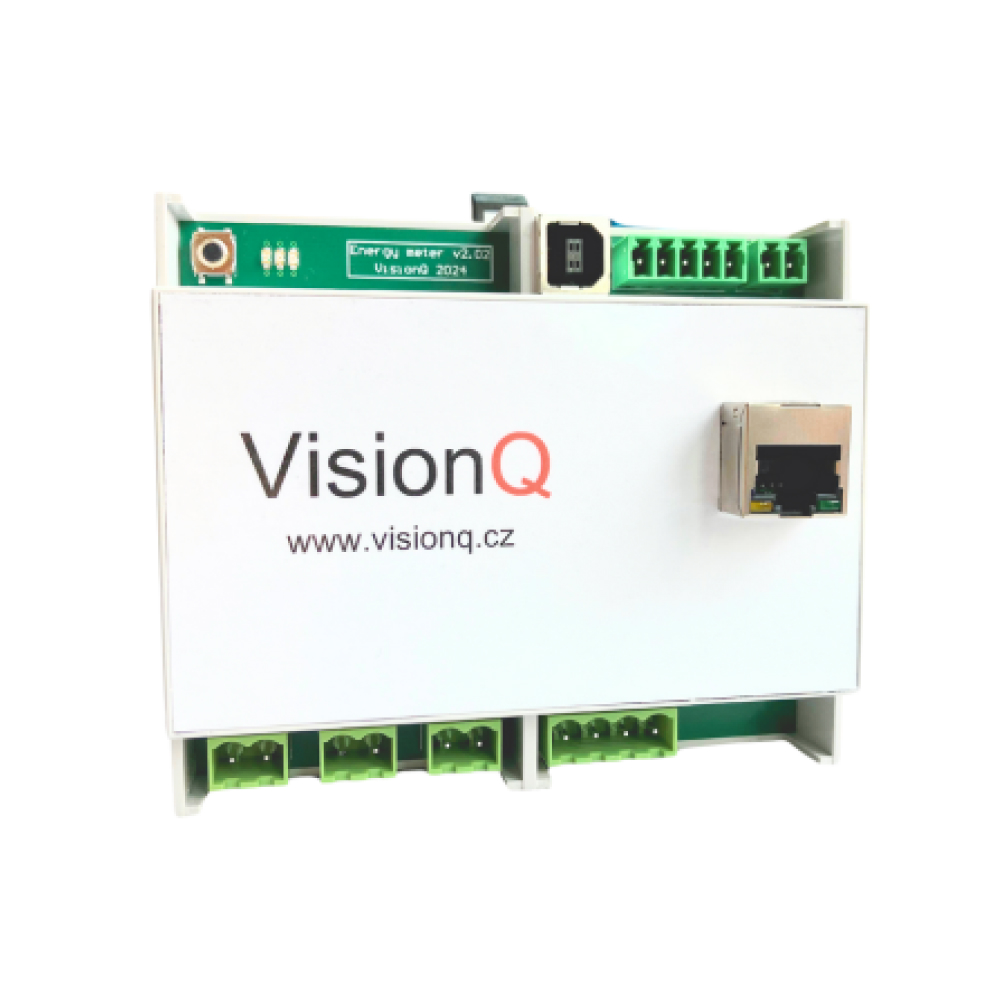

Measurement of electric consumption on 3-phases

• Reports accumulated energy as well as instantaneous voltage, current, and power factor per phase in real-time.
• Not dependent on internet connection (optional communication via NarrowBand/LoRaWan/ RS485 MODBUS, Ethernet)
• Automatic reading according to set interval
• Option to export data to own system, API
• Ideal for monitoring consumption on individual devices, circuits
• Can also be used for power generation (e.g. photovoltaics)

Tech specs:

• Supported LPWANs: LoRaWAN, NB-IoT
• Mounting: DIN rail mount
• Power supply: mains
• Operation temperature: -20 .. 50 °C
• Protection: IP 20
• Rated voltage: 100-240V AC 50 Hz
• Measurable current range: according to current transformers
• Dimensions: 106 x 90 x 43 mm
• Weight: 148 g
• Antenna: LoRaWAN: for 868 MHz band,
• NB-IoT: for LTE band B3, 8, 20
• Communication interface: Powermeter Basic
• RS485 - MODBUS and USB. Extension
• Powermeter module: Ethernet/ LoRAWAN, NarrowBand.
• Configuration: via USB or RS485-MODBUS
